High Platform Wafer Ball Valve
Description
Technical Parameters
Quick Details
Type: iso 5211 wafer ball valve Place of Origin: Zhejiang, China Brand Name: SINPO Warranty: 1 year, 12 Months Customized support: OEM, ODM Temperature of Media: -10°-120° | Power: Manual Port Size: 1/2"-4" Structure: BALL Body material: Stainless Steel/Carbon Steel Standard: ANSI BS DIN JIS Handle Sleeve Color: Depend on Your Required |
Supply Ability
10000 Piece/Pieces per Month
Packaging Details
Our process for packaging each ss ball valve begins with placing it into a plastic bag for protection. The bagged valve is then placed into an inner box and carton. Finally, to ensure safe transportation, the packages are either packed into sturdy plywood cases or onto pallets. This carefully designed packaging process guarantees that our products arrive at their destination in excellent condition.
Port
Ningbo, Shanghai, etc
Lead Time
The availability of our products is generally good with most items being in stock. However, in case certain products are not currently available, please note that the estimated delivery time would be between 15 to 25 days.
Product Description

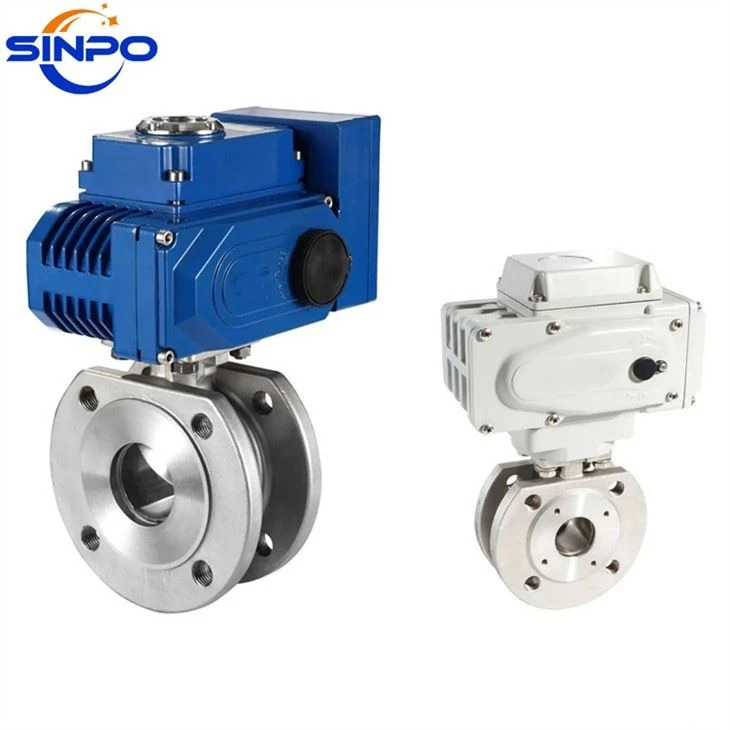

The High Platform Wafer Ball Valve is a crucial device used in the industrial sector to manage fluids. The valve comprises several components such as valve seats, operating rods, balls, etc. which help control the flow of fluids. Turning the ball controls the fluid flow quickly, reliably, and effectively. Furthermore, if there is a requirement to halt the fluid flow in the pipeline, the ball can be revolved to a position perpendicular to the fluid's flow direction. This valve can also help regulate the speed of the fluid flow by rotating the ball. In addition, you can install this valve in the opening part of the pipeline, which saves production space and does not consume much area. Additionally, we also provide customized valves to our clients to cater to their unique requirements.
Advantages
Sturdy And Durable: Our High Platform Wafer Ball Valve is forged at high temperature and poured from raw materials, so it is strong and durable. Stainless steel or carbon steel materials have undergone anti-oxidation treatment and can be used in high-temperature, high-pressure, or high-humidity environments, and can be widely used in petroleum, chemical, metallurgy, power station, light industry, and other fields.
Precise and efficient: High Platform Wafer Ball Valve has a compact structure and good wear resistance and corrosion resistance. At the same time, the ball is designed with a full bore, which has extremely low fluid resistance. Both the ball and the valve seat are sealed with O-rings, which can effectively prevent liquid leakage. Moreover, its operating rod is designed in a V shape, which can easily allow you to judge the opening and closing status of the valve so that its operation is more precise.
Dimensions
CLASS 150
Size | d | L | C | B | D | H1 | H |
1/2" | 15 | 42 | 34.5 | 60.3 | 90 | 76 | 48.5 |
3/4" | 20 | 44 | 42.9 | 69.9 | 100 | 81 | 53.5 |
1" | 25 | 50 | 50.8 | 79.4 | 110 | 90 | 59 |
1 1/4" | 30 | 60 | 63.5 | 88.9 | 115 | 102 | 71 |
1 1/2" | 36 | 65 | 73 | 98.4 | 125 | 115 | 78 |
2" | 46 | 80 | 92.1 | 120.7 | 150 | 122 | 85 |
2 1/2" | 57 | 110 | 104.8 | 139.7 | 180 | 168 | 100 |
3" | 73 | 120 | 127 | 152.4 | 190 | 178 | 110 |
4" | 90 | 150 | 157.2 | 190.5 | 230 | 198 | 130 |
PN16-PN40
Size | d | L | C | B | D | H1 | H |
1/2" | 15 | 42 | 45 | 65 | 95 | 76 | 48.5 |
3/4" | 20 | 44 | 58 | 75 | 105 | 81 | 53.5 |
1" | 25 | 50 | 68 | 85 | 115 | 90 | 59 |
1 1/4" | 30 | 60 | 78 | 100 | 140 | 102 | 71 |
1 1/2" | 36 | 65 | 88 | 110 | 150 | 115 | 78 |
2" | 46 | 80 | 102 | 125 | 165 | 122 | 85 |
2 1/2" | 57 | 110 | 122 | 145 | 185 | 168 | 100 |
3" | 73 | 120 | 138 | 160 | 200 | 178 | 110 |
4" | 90 | 150 | 158 | 180 | 220 | 198 | 130 |
The specific specifications of this product can refer to the above content.
Company Profile
Sinpo Valve is a high-tech integrated enterprise that specialized in valve R&D, manufacturing, sales. Our company is located in valve township- Yuhuan, Taizhou, Zhejiang, with an area of 10000 square meters. Our main products are floating valve, ball valve, ISO tank parts, gate valve, globe valve, check valve and pipe fittings, what's more, we can manufacture customized valves and fittings according to customer's sample and request!
Production Process
Each of our products has been carefully produced and inspected, only passing the test can pass.
FAQ
1. Are you manufacturer or trading company ?
A: We have own factory which is a industry and trade integration business.
2. How about your capacity?
A: As you know, we have 50staffs, own 20 CNC machines, and three persons in charge of quality inspection. So please believe us that we can deliver valves as your request.
3. What's the advantage of your parts for industry products?
A: Competitive prices, fast delivery and high quality
4. Can your factory produce products according to our drawings or samples?
A: Yes, of course we can.
5. If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
Stainless steel ball valves are made with threaded or flanged joints. They enable to interrupt flows of liquid or gas inside pipelines.Our ball valves are manufactured in high grade 316 stainless steel. However, we do offer some variations in SS 304 for better pricing. 316 Stainless Steel lockable full port ball valves for use with water, oil and gas.
