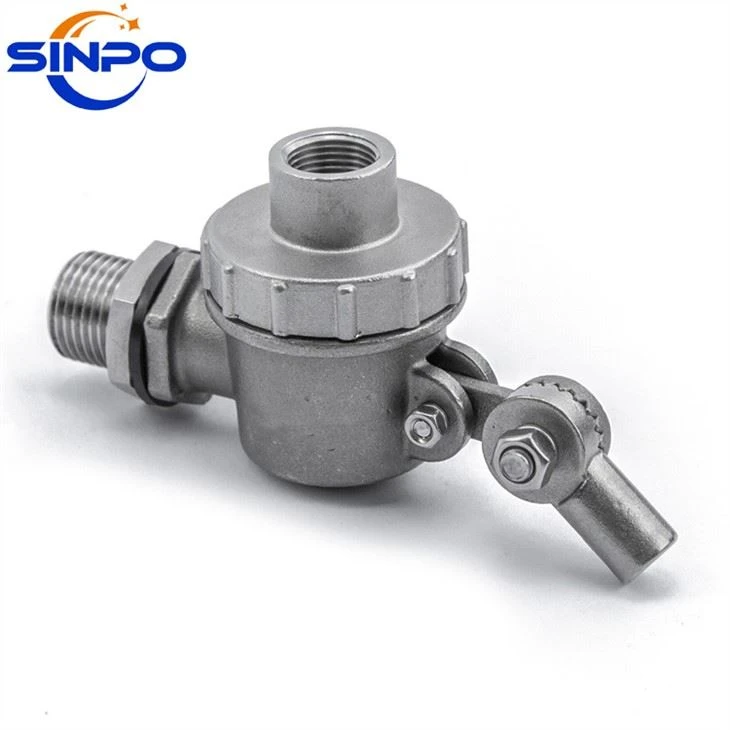

High Pressure Threaded Float Valve
Description
Technical Parameters
Our threaded float valve is specifically designed to automatically stop the water flow to a tank or automatic water supply system when it reaches a pre-set water level. It is perfect for use in high-pressure liquid and gas pipeline systems, offering a range of advantages such as a simple structure, user-friendly operation, and a valve body that is highly resistant to damage. Not to mention, it requires minimal maintenance, resulting in cost savings. Crafted from top-notch stainless steel, this float valve exhibits exceptional resistance to high temperatures, oxidation, and rust. As a result, it is ideal for applications that involve high temperatures, high pressures, corrosive environments, or acidic and alkaline conditions. You'll find this versatile valve widely used across various sectors, including industrial, residential, and medical fields. Additionally, the smooth surface of the seat and float allows for effortless cleaning. Typically, users only need to remove the valve body and clean the valve seat and floating ball. Should you be interested in purchasing this product, do not hesitate to reach out to us for a quote!
Product advantages
With its six-point welding, this float valve outperforms similar products in terms of its durability. Its numerous solder joints make it less prone to detachment, which means that it has a longer lifespan.
The float valve is exceptionally durable due to its stainless steel construction, enabling it to endure significant pressure without succumbing to damage. Furthermore, its distinctive notch design effectively mitigates cracking that may occur from excessive force, further enhancing its strength and resilience. In essence, this float valve is engineered to withstand rigorous conditions and is highly resistant to potential harm.
The guarantee of pipeline safety is effectively ensured because the sealing material is composed of soft rubber. This rubber possesses excellent elasticity, resistance to ozone, weather aging, corrosion, high temperatures, and flame retardancy.
4. This high pressure threaded float valveDuring its use, it does not emit any harmful substances, which means it is not only incredibly eco-friendly, but also doesn't contribute to water pollution, thereby maintaining water quality.
Quick Details
Type: high pressure float valve Place of Origin: Zhejiang, China Brand Name: SINPO Temperature of Media: High Temperature, 0~100℃ | Port Size: 1/2 to 2 inch Suitable Medium: Water, Oil, etc Port: Ningbo, Shanghai, etc |
Specification
Connection | BSP, BSPT, DIN2999, NPT |
Material | Stainless Steel |
Pressure | 0 to 16 bar |
Medium Temperature | 0 to 100℃ |
Mediums | Water, oil, etc |
Materials
No. | Part Name | Material | No. | Part Name | Material |
1 | Body | SS304 | 7 | Sealing | KFM |
2 | Lock nut | SS304 | 8 | Cap | SS304 |
3 | Gasket | NBR | 9 | Nut | SS304 |
4 | Sealing | KFM | 10 | Ball | SS304 |
5 | Plug | SS304 | 11 | Joint | SS304 |
6 | Stem | SS304 |
Dimensions
Size | L1 | L2 | L3 | d | D | S |
1/2" | 16 | 56 | 290 | 15 | 15 | 115mm |
3/4" | 18 | 56 | 290 | 17 | 19 | 115mm |
1" | 20 | 60 | 300 | 22 | 26 | 135mm |
1 1/4" | 20 | 68 | 300 | 24 | 35 | 135mm |
1 1/2" | 22 | 74 | 400 | 26 | 40 | 150mm |
2" | 25 | 84 | 400 | 31 | 50 | 150mm |
Why Choose Us
We can supply and stock wide range of high pressure threaded float valves. We have active managment, experienced technical people, labor workers. High effective sales team. Mass production capacity ensures on-time delivery and quick response to any quote and complaint.
Company Profile
Sinpo was established in 2003. We are a firm with integrated design, casting, machining, assembly, inspection, testing, marketing and service units.Meeting DIN, ASME, JIS, EN and Other Standards.Search through our range of ball valves, gate valves, check valves, globe valves, strainers and automated valves to find the appropriate models for your target market. Our products comply with international standards including API 6D, API 608, API 607, ASME, PED 97/23 EN, BS, DIN, JIS, DVGW W534 and GB-TSG. Available pressure ratings include Class 150/ 300/ 600/ 900/ 1500, PN16/ 25/ 40/ 63/ 100/ 160 and JIS10K/ 20K/ 30K/ 65K/ 110K. The materials we use include CF8M, CF8, CF3, CF3M, CN7M, LCB, WCB, WC6, WC9 and C5, we also accept other materials upon your request.
Production Process
Each of our products has been carefully produced and inspected, only passing the test can pass.
Packaging
FAQ
1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. How to proceed an order for valve?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
3. Is the sample order acceptable?
A: Yes, of course.
4. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
5. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
